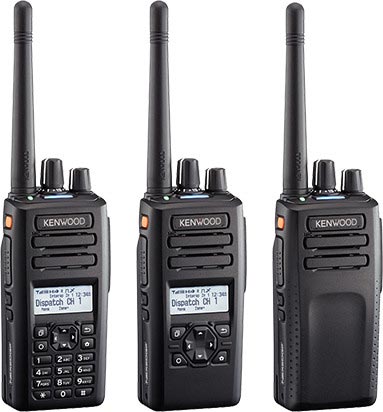

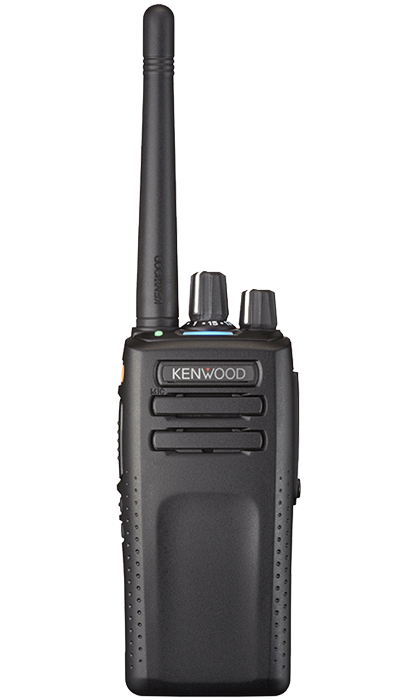

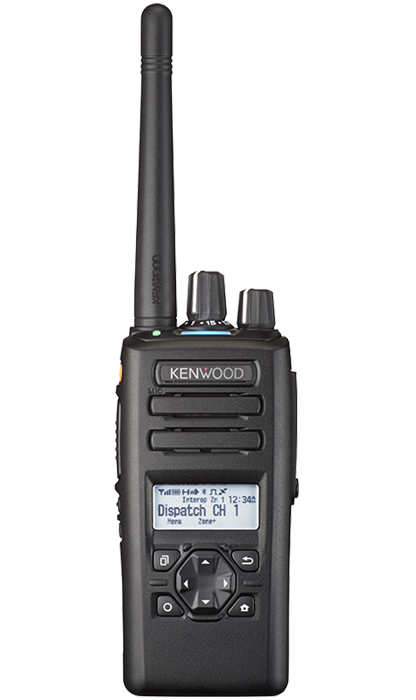

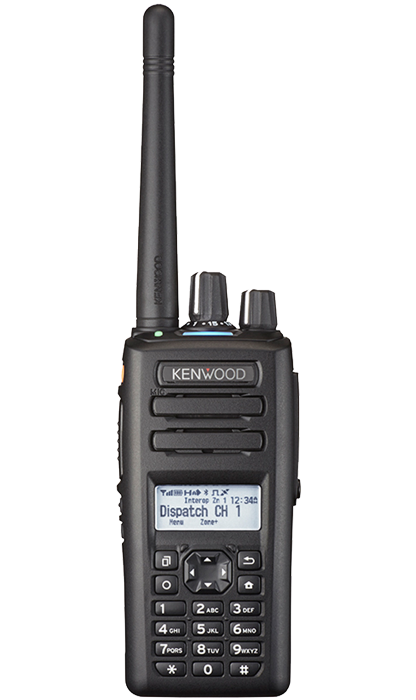

The Kenwood NX3000 range of DMR and NEXEDGE digital radios can now be fitted with a KEN1 module, enabling seamless location data transmission to the SafetyNet Locator system. DOWNLOAD A BROCHURE KEN1 Safetynet Locator Module The Kenwood NX3000 range of DMR and NEXEDGE digital radios can now be fitted with a KEN1 module, enabling seamless location data transmission to the SafetyNet Locator system. Kenwood NX3000 Series Compatible – KEN1 Safetynet Locator Module Kenwood NX3000 Series Compatible – KEN1 Safetynet Locator Module Kenwood NX3000 Series Compatible – KEN1 Safetynet Locator Module SafetyNet Locator system.

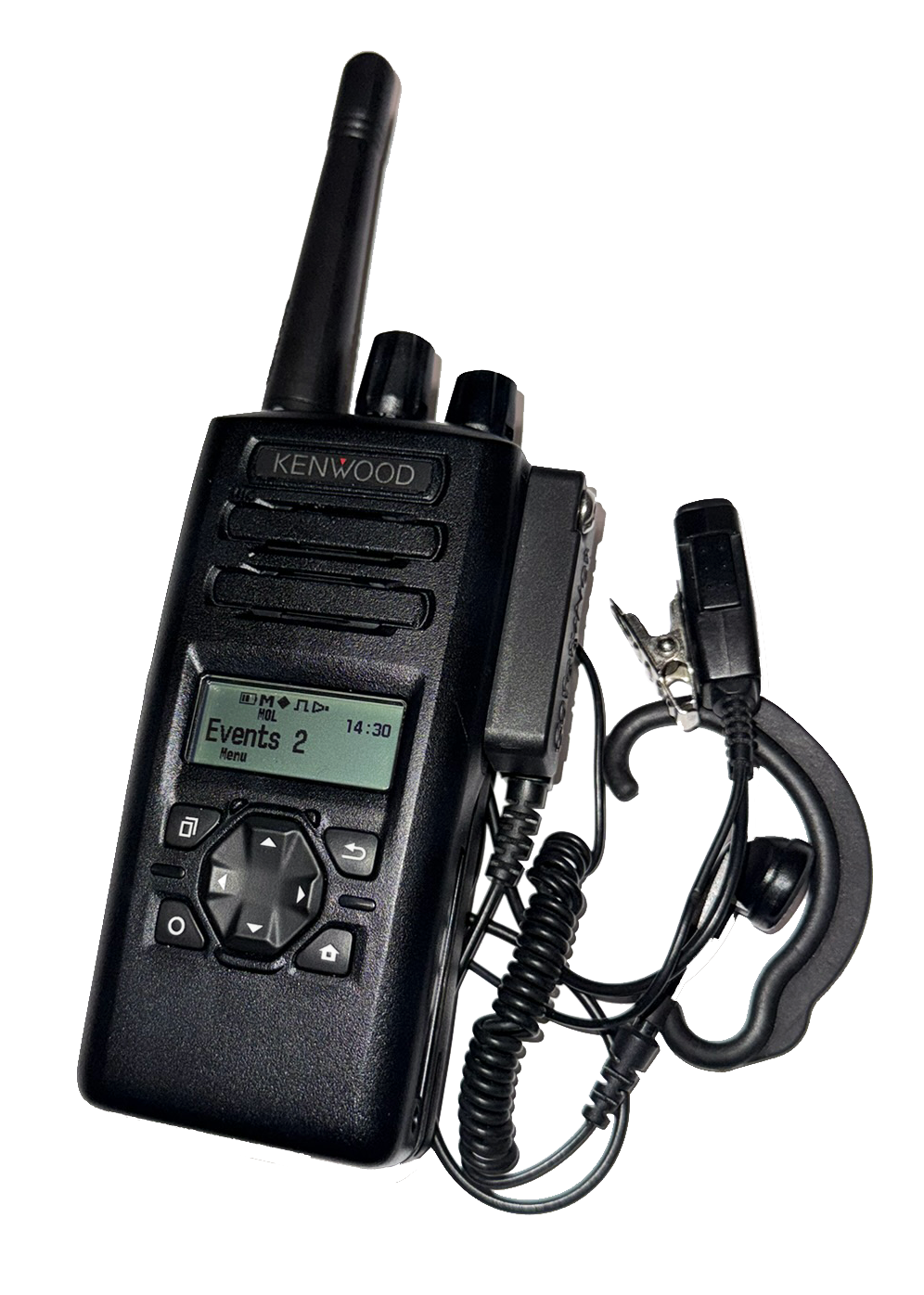

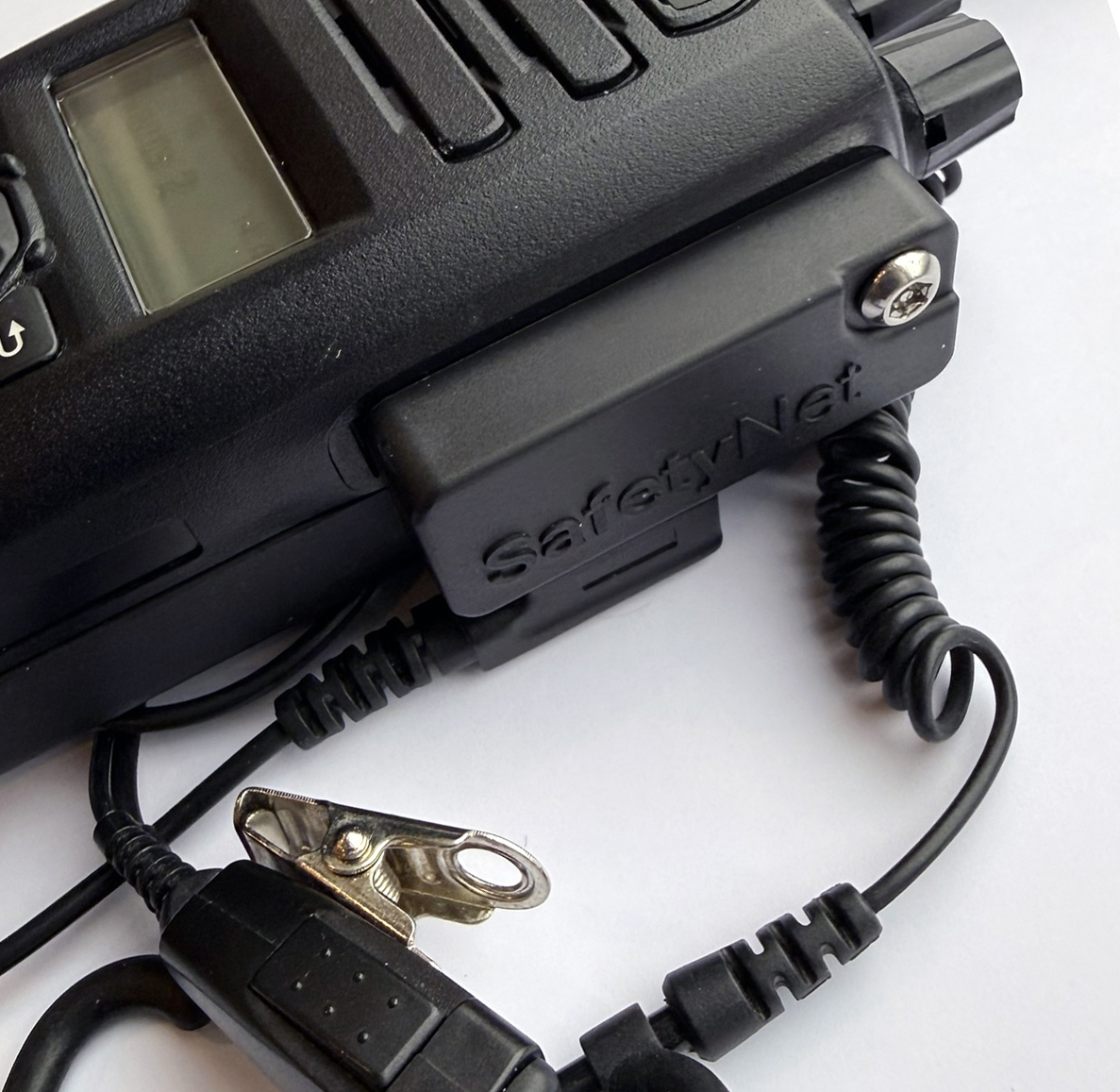

Overview This professional-grade module attaches externally via the accessory side connector and provides connectivity to standard Kenwood accessories using the dual jack plug range of products. It provides a robust, secure, and interference-resistant alternative to conventional Bluetooth-based location solutions. Key Features radio_button_checked Fits directly onto the accessory connector – no modification required radio_button_checked Sealed to IP54 radio_button_checked Secure and seamless transmission of location data from fixed beacons radio_button_checked Supports both tracking and polled modes radio_button_checked External mounting for improved reception and performance radio_button_checked Dual-jack design enables lower-cost peripheral compatibility radio_button_checked Programmable for future feature upgrades radio_button_checked Built on proven technology used in the HYT6 module

DOWNLOAD OUR BROCHURE BOOK A DEMO TALK TO AN EXPERT

Indoor & Outdoor Positioning

The KEN1 module is compatible with Kenwood DMR and NEXEDGE radios equipped with GPS (MD) options, enabling comprehensive indoor and outdoor tracking. It receives signals from fixed-location beacons and relays this data over the radio network to SafetyNet Locator for real-time personnel monitoring.

Originally developed for Liverpool Museums, the KEN1 offers a more reliable and professional alternative to mass-market Bluetooth beacons, which are vulnerable to interference and jamming in crowded RF environments.

Specifications

Modes of operation:

Tracking:
Module updates on receipt of a new beacon signal
Polled:
Module updates only when requested by SafetyNet
Programming:
PMR Programming Pod and Test unit
Weight: 15g
Dimensions:
50(l) x 20(w) x 22(h) mm (to top of locking mechanism)
Construction:
ABS plastic housing
IP54 sealed with positioning tab
Screw-locking mechanism
Receiver type:
IEEE802.15.4
Receiver frequency:
2.4–2.5 GHz
Current consumption:
20mA receive, 2.6uA standby
Compliance:
ETSI EN 300 328 v1.7.11
CFR 47 FCC Part 15
